Multigrip Rivet large Flange (16mm) - Alum body/Stainless Steel Mandrel
Product Code: AFMA24825
Min Grip Range (mm): 12
Max Grip Range (mm): 19.5
Shear N: 1500
Tensile N: 2350
Body Mat: Alum - Al Mg 2.5
Mandrel Mat: Stainless Steel
Hole: 4.9mm

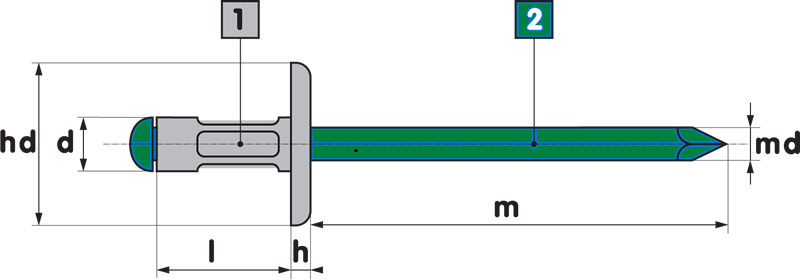

hd: 16.0 +/- 0.5mm
d: 4.8 + 0.05 / - 0.13mm
l: 25mm
m: 27mm
md: 2.78mm
€13.12
